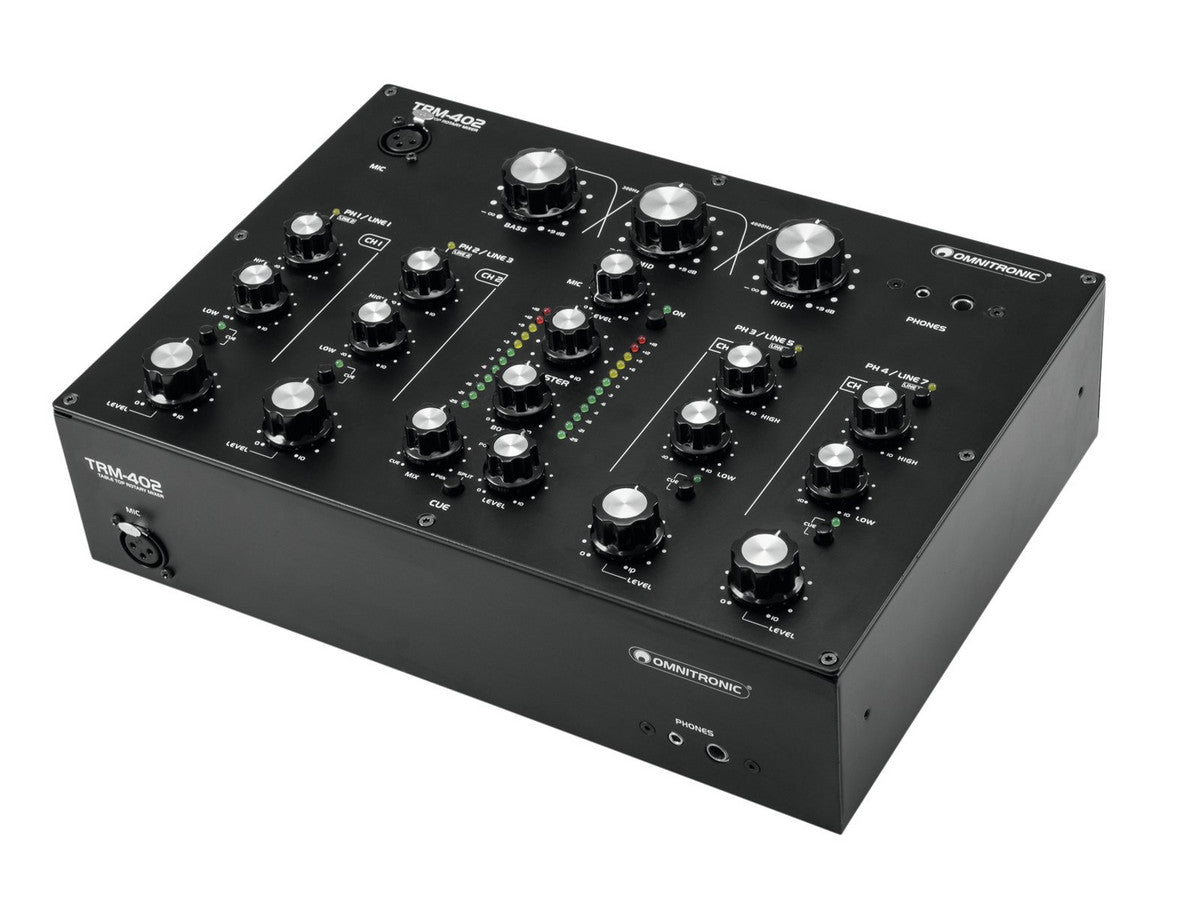

Mixer OMNITRONIC TRM-402 (NUEVO - POR ENCARGO)

Classic rotary mixer with 4 input channels and integrated 3-band frequency isolator for DJs Gain control, 2-way equalizer (Highs/Lows) and phono/line switching per channel

Dedicated boost and kill cut Kill cut feature allows DJs to completely remove low, mid and high frequencies for amazing mixing Vintage ALPS potentiometers (Blue Velvet RK27)

High-grade components ensure long life and excellent sound quality DJ microphone input with separate level control

Prefader listening to input channels and the master output via adjustable headphones output, with cue mix/split function

12-digit stereo LED level meter and master level control

Booth output with separate level control

Dual inputs for DJ microphone and headphones on the top and front panel

Inputs: 8 x line and 4 x phono (RCA L/R)

Outputs: master and booth (XLR/RCA L/R) and record (RCA L/R)

TECHNICAL SPECIFICATIONS

Power supply: 100-240 V AC, 50/60 Hz

Gain:

Line: 20 dB

Phono: 60-75 dB

Mic: 44 dB

Max. output level: 22 dBu

Frequency range:

Line: 20-20000 Hz

Phono: 40-18000 Hz

Mic: 20-20000 Hz

S/R ratio:

Line: 85 dB

Phono: 77 dB

Mic: 80 dB

THD:

Line: <0.03 %

Phono: <0.1 %

Frequency isolator: - to +9 dB

Lows: 20 Hz to 300 Hz

Mids: 300 Hz to 4 kHz

Highs: 4 kHz to 20 kHz

Inputs:

LINE: RCA L/R

PHONO: RCA L/R

DJ microphone: XLR

Outputs:

MASTER: XLR/RCA L/R

BOOTH: XLR/RCA L/R

REC: RCA L/R

Headphones output: 3.5 mm jack and 6.3 mm jack (min. 32 ohms)

Dimensions (W x D x H): 247 x 330 x 107 mm

Weight: 4.05 kg

Power consumption: 7,2 W

Height: 10,7 cm

Depth: 24,7 cm

Width: 33 cm
